This is anisotropic magnets made by hot deformation process, mainly composed of NdFeB.
- The world’s highest magnetic properties for ring-shaped magnets
- High heat resistance
- Almost no corrosion from inside the magnet
This magnet is made of neodymium-iron-boron (NdFeB) powder produced by rapid quenching method and formed by Daido’s original hot deformation process.
The greatest feature of hot-deformed magnet is that they can be produced without HRE (heavy rare earths) like Dysprosium and/or Terbium to obtain appropriate magnetic properties. This is the world’s first magnet that does not use HRE to be used in main motors for HEVs vehicle.
Features
- HRE Free/HRE Less with high heat resistance is possible.
- BH(max) is 240~400kJ/m3
- Long ring magnets can be manufactured.
- For ring shapes, bonding assemblies with parts are also available.
Applications
Automotive main motors/generators, power steering motors, FA servo motors, medical use…
EPS
AC Servo
Production Process
It is known that the finer the crystal grains of the raw material, it will be higher the coercive and higher the heat resistance. Since hot-deformed magnet consist of fine nanocrystals, therefore it do not need to use any (or can greatly reduce the amount of) expensive HRE that is commonly added to sintered magnets.

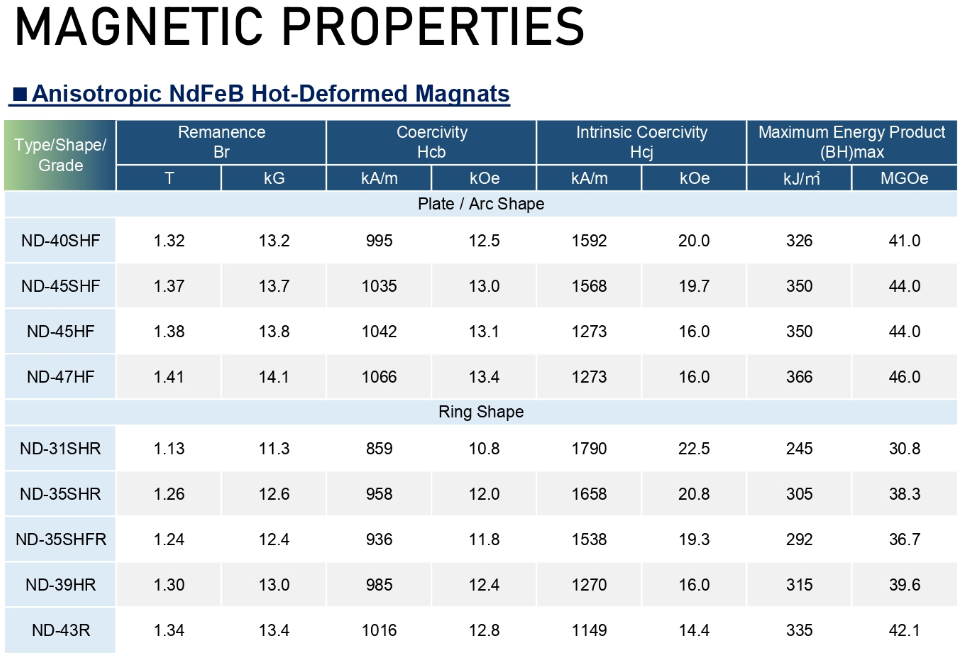

Magnetic Properties
Dimension Capability
In addition to rings and plates, we have developed hot-deformed magnet in various shapes and orientations such as Arcs, Breadloaf, and Fan shapes.
